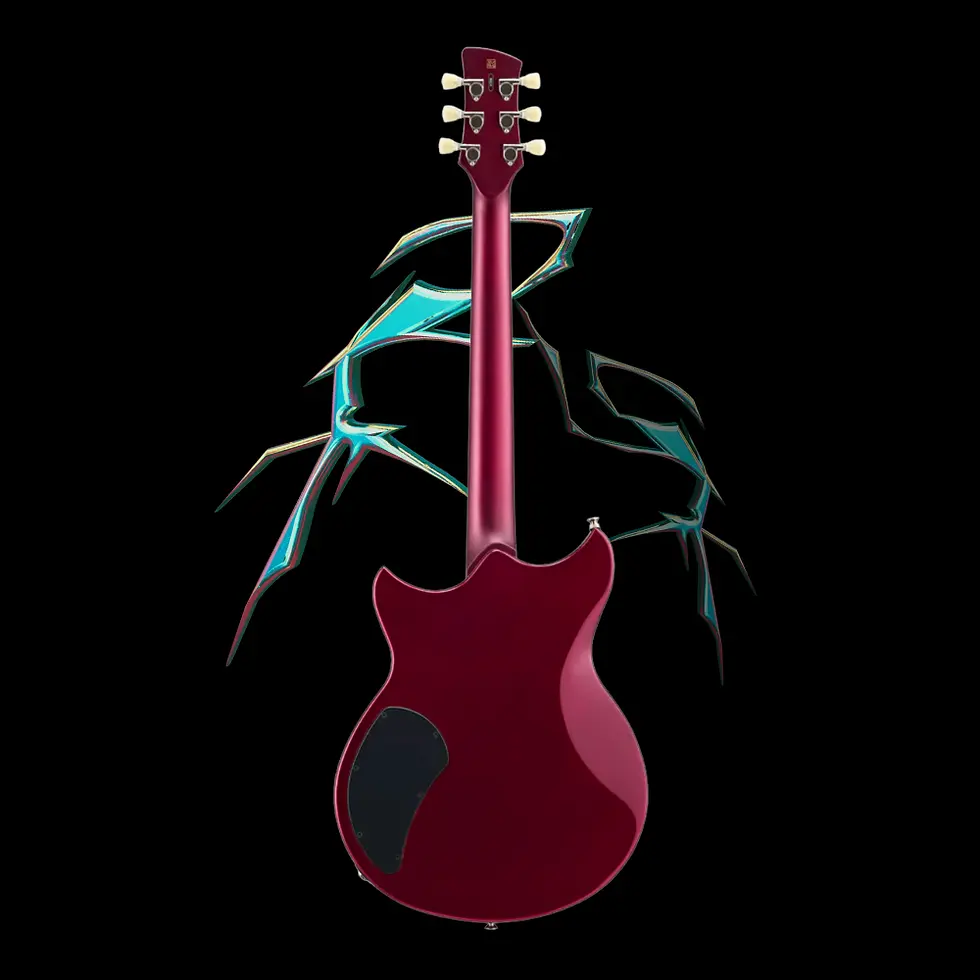

RSE20 (H-H)
Model: RSE20 (H-H)
Color: BK (Black) | NY (Neon Yellow) | RC (Red Copper) | SB (Swift Blue) | VW (Vintage White)
Series: REVSTAR Element Series


Key Features:

  • Construction - A Set-In construction, providing enhanced sustain and stability for optimal performance.

  • Body Material - The guitar is crafted with Chambered Mahogany as the top, offering a balanced tone with resonance and reduced weight.

  • Pickup Configuration - Equipped with 2 Alnico V Humbucking Pickups, delivering a versatile range of tones with warmth and clarity.

  • Bridge Type - Further equipped with Tune-O-Matic bridge, ensuring precise intonation and easy string adjustments.

  • Pickup Switch - 3-Position Level Switch:
    Position 1. Bridge Pickup - VH3n: Humbucker / Alnico V
    Position 2. Bridge & Neck Pickup
    Position 3. Neck Pickup - VH3n: Humbucker / Alnico V

  • Music Genres - This model is generally well-suited for various music genres, including rock, blues, and alternative, providing versatility and excellent performance capabilities.

Click here for more product information on RSE20 from Yamaha's Official Website

RSE20 (H-H)

SKU: YMH-EG-RSE20
RM 2,690.00 Regular Price
RM 2,000.00Sale Price
Finish
Quantity
  • General Specifications
    Construction Set-In
    Scale Length 24-3/4” (628.6mm)



    Body Specifications
    Body Materials Chambered Mahogany
    Body Finish Gloss Polyurethane



    Neck - Specifications Specifications
    Neck Materials 3-Piece Mahogany
    Neck Finish Satin Polyurethane
    Fingerboard Materials Rosewood
    Fingerboard Radius 12" (304.8mm)
    Fret Wire Jumbo
    Number of Frets 22
    Nut Materials PPS
    Neck Width At 0 Fret / 12th Fret 41.9 / 52.0 mm
    Thickness At 1st Fret / 12th Fret 21.0 / 23.9 mm



    Electronics Specifications
    Neck Pickup VH3n: Humbucker / Alnico V
    Middle Pickup -
    Bridge Pickup VH3b: Humbucker / Alnico V
    Controls Master Volume, Master Tone (Push-Pull, "Dry Switch")
    Pickup Switch 3-Position Lever Switch



    Hardware Specifications
    Bridge Tune-O-Matic
    Tremolo Arm -
    String Spacing 10.5 mm
    Tailpiece Stop-Bar
    Tuning Machines Die-Cast
    Pickguard Swift Blue / Neon Yellow: 3-Ply Cream, Black / Vintage White / Red Copper: 3-Ply Black



    Others Specifications
    String Gauge Elixir Nanoweb Light / 0.010-0.046
    Case -
    Special Features -
